Author Topic: is there a network manager,widget for openbox  (Read 4234 times)

Offline Dualityonme

  • Full Member
  • ***
  • Posts: 112
is there a network manager,widget for openbox
« on: February 28, 2016, 02:21:06 AM »
flit shows battery usage,it's fine.conky is not what windows-driven user would expect.



What doesn't kill you...will make you dead next time!

Offline Juanito

  • Administrator
  • Hero Member
  • *****
  • Posts: 14815
Re: is there a network manager,widget for openbox
« Reply #1 on: February 28, 2016, 02:36:27 AM »
Are you looking for a system info utility (flit, conky) or a network manager (wicd)?

conky will show a lot of info, but it takes some effort with the config file - you can get a bunch of ready made config files from their web site though...

Offline Dualityonme

  • Full Member
  • ***
  • Posts: 112
Re: is there a network manager,widget for openbox
« Reply #2 on: February 28, 2016, 03:56:26 AM »
something like on windows - part of a sidebar
What doesn't kill you...will make you dead next time!

Offline Juanito

  • Administrator
  • Hero Member
  • *****
  • Posts: 14815
Re: is there a network manager,widget for openbox
« Reply #3 on: February 28, 2016, 04:40:29 AM »
OK, but what do you want in the sidebar, system info or a network manager?

Offline Misalf

  • Hero Member
  • *****
  • Posts: 1702
Re: is there a network manager,widget for openbox
« Reply #4 on: February 28, 2016, 08:14:02 AM »
I have recently found  network_tray  on the Puppy forums (http://www.murga-linux.com/puppy/viewtopic.php?t=98464) and hacked it to be compatible with Tiny Core.

I guess I could post the code and even submit an extension to the repo but I'm not sure about the licensing so I'd need confirmation by someone more involved in the free software world.

Maybe this would be better
netmon_wce: http://www.murga-linux.com/puppy/viewtopic.php?t=100216
Download a copy and keep it handy: Core book ;)

Offline Misalf

  • Hero Member
  • *****
  • Posts: 1702
Re: is there a network manager,widget for openbox
« Reply #5 on: February 28, 2016, 08:23:03 AM »
And why not showing off my excessive conky.. q:
Download a copy and keep it handy: Core book ;)

Offline Juanito

  • Administrator
  • Hero Member
  • *****
  • Posts: 14815
Re: is there a network manager,widget for openbox
« Reply #6 on: February 28, 2016, 08:31:16 AM »
The first few lines say:
Quote
/*Network monitor for system tray*/
/*(c) Copyright Barry Kauler 2010, bkhome.org*/
/*GPL license: /usr/share/doc/legal/gpl-2.0.txt*/
/*first release, version 2.0, may 18, 2010*/

..so it should be OK

Offline Dualityonme

  • Full Member
  • ***
  • Posts: 112
Re: is there a network manager,widget for openbox
« Reply #7 on: February 28, 2016, 09:08:46 AM »
You can get puppy linux pets on tiny core?!?! Please share a method if nobody haven't had yet!

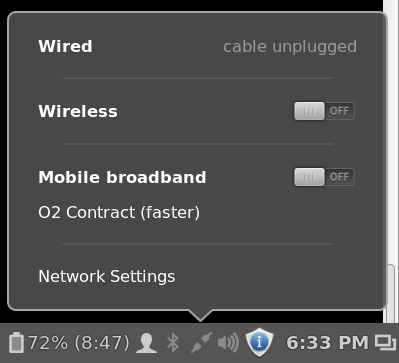

I need something like this (on picture) but for openbox/flwm.


http://2.bp.blogspot.com/-clOhtkpsrpg/U3-IGHvfE1I/AAAAAAAAA_c/-vWJLEio_g4/s1600/FixedNetworkApplet.png




http://3.bp.blogspot.com/-vOezPMwYX_o/UQReQlrCgyI/AAAAAAAAB1A/fT3CfAcv2NY/s1600/linuxlite2.png




When i search using search/provides/tags for applets,widgets doesn't give appropriate.

Wicd mysteriously not working nor installing on my system.

« Last Edit: February 28, 2016, 09:12:14 AM by Dualityonme »
What doesn't kill you...will make you dead next time!

Offline Misalf

  • Hero Member
  • *****
  • Posts: 1702
Re: is there a network manager,widget for openbox
« Reply #8 on: February 28, 2016, 09:45:17 AM »
Thanks for checking, Juanito.

You can get puppy linux pets on tiny core?!?!
No. One can compile the source though.

Code: [Select]
/*Network monitor for system tray*/
/*(c) Copyright Barry Kauler 2010, bkhome.org*/
/*GPL license: /usr/share/doc/legal/gpl-2.0.txt*/
/*first release, version 2.0, may 18, 2010*/
/*version 2.1: new icons*/
/*version 2.3: icons now external, now displays dead icon correctly*/
/*version 2.3.2: still trying to get icon to update correctly*/
/*version 2.4: display tx/rx in KB if <1024, improved mouse-click operations*/
/*version 2.4.1: fix icon update when disconnect/reconnect*/
/*version 2.4.2: display acc monthly tx/rx*/
/*version 2.4.3: change 'long int' to 'long long int' -- 32-bit to 64-bit*/
/*2.5 (20120519): rodin.s: added gettext*/
/*2.9 (20140125): 01micko: added domain*/
/*2.9.1 (20150407) : peebee/rerwin: set Update function exit status expected by g_timeout_add; replace deprecated gtk calls*/
/*2016-20-16: Misalf: Increased update interval ; TinyCore compat. - Removed monthly tx/rx & Changed net tools ; Changed icons & some text.*/

#include <string.h>
#include <libintl.h>
#include <locale.h>
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <fcntl.h>
#include <gtk/gtk.h>
#include <gdk/gdk.h>
#include <gdk/gdkkeysyms.h>
#include <glib/gstdio.h>
#include <dirent.h>
#include <errno.h>
#define _(STRING)    gettext(STRING)



GdkPixbuf *networkblank_pixbuf;
GdkPixbuf *networkboth_pixbuf;
GdkPixbuf *networkdead_pixbuf;
GdkPixbuf *networkin_pixbuf;
GdkPixbuf *networkout_pixbuf;

GtkStatusIcon *tray_icon;
unsigned int interval = 1500; /*update interval in milliseconds*/

char *netdir = "/sys/class/net";
DIR *dip;
struct dirent *dit;
//int  i = 0;
char buf1[1024];
FILE *fp;
char char1;
int flagactive = 0;
int flagactiveprev = 0;
char infomsg[256];
char rxstr[52];
long long int rxacc = 0;
char rxaccstr[64];
char txstr[52];
long long int txacc = 0;
char txaccstr[64];
long long int rxaccprev = 0;
long long int txaccprev = 0;
int flagtransfer = 0;
int flagtransferprev = 0;
int loopcnt = 0;
int breakcnt = 0;
int flagdisconnect = 0;

//100814
//char *rxmonthfile = "/var/local/sns/rx_bytes_month";
//char *txmonthfile = "/var/local/sns/tx_bytes_month";
//char rxstrmonth[52];
//long long int rxaccmonth = 0;
//char txstrmonth[52];
//long long int txaccmonth = 0;
//long long int rxaccmonth_updated = 0;
//long long int txaccmonth_updated = 0;
char ipa[20];
char dname[30]; //big enough?

GError *gerror;


gboolean Update(gpointer ptr);
int find_active();

int find_active() {

    //ip address
fp = (FILE *)popen("/sbin/ifconfig|grep -iE 'Bcast|P-t-P'|tr -s ' '|tr ' ' ':'|cut -d ':' -f4" , "r");
fgets(ipa,sizeof ipa,fp);
pclose(fp);

if (ipa == NULL) return 1;

  //domain name
    fp = (FILE *)popen("grep -iE 'domain' /etc/resolv.conf" , "r");
fgets(dname,sizeof dname,fp);
pclose(fp);

if (dname == NULL) return 1;

    flagactive = 0;
    infomsg[0] = 0;
    strcat(infomsg,_("Interfaces: "));

    dip=opendir(netdir);
    if (dip==NULL) return 1;

    while ((dit = readdir(dip)) != NULL)
    {
        //i++;
        if (strcmp(dit->d_name,".")!=0 && strcmp(dit->d_name,"..")!=0 && strcmp(dit->d_name,"lo")!=0 ) {
            buf1[0]=0;
            strcat(buf1,netdir);
            strcat(buf1,"/");
            strcat(buf1,dit->d_name);
            strcat(buf1,"/dormant");
            fp=fopen(buf1,"r");
            if (fp!=NULL) {
                char1=fgetc(fp);
                fclose(fp);
                //if interface active, char1==0...
                if (char1=='0') {
                    flagactive=flagactive+1;
                    strcat(infomsg,dit->d_name);
                    strcat(infomsg," ");
                    //accumulate bytes received...
                    buf1[0]=0;
                    strcat(buf1,netdir);
                    strcat(buf1,"/");
                    strcat(buf1,dit->d_name);
                    strcat(buf1,"/statistics/rx_bytes");
                    fp=fopen(buf1,"r");
                    if (fp!=NULL) {
                        fgets(rxstr,12,fp);
                        rxacc=atol(rxstr)/1024;
                        fclose(fp);
                    }
                    //rxaccmonth_updated=(rxaccmonth+rxacc)/1024; //100814 in MB
                    //accumulate bytes transmitted...
                    buf1[0]=0;
                    strcat(buf1,netdir);
                    strcat(buf1,"/");
                    strcat(buf1,dit->d_name);
                    strcat(buf1,"/statistics/tx_bytes");
                    fp=fopen(buf1,"r");
                    if (fp!=NULL) {
                        fgets(txstr,12,fp);
                        txacc=atol(txstr)/1024;
                        fclose(fp);
                    }
                    //txaccmonth_updated=(txaccmonth+txacc)/1024; //100814 in MB

                }
            }
        }
    }

    closedir(dip);
    if (flagactive==0) {
        strcat(infomsg,_("None"));
        strcat(infomsg,_("\nLeft-Click starts net_connect.sh"));
        strcat(infomsg,_("\nRight-Click for network setup"));
    }
    else {
        if (rxacc < 1024) {
            sprintf(rxaccstr,"%.1f",((float)rxacc));
            strcat(infomsg,"\nRx: ");
            strcat(infomsg,rxaccstr);
            strcat(infomsg,_("KB "));
        }
        else {
            sprintf(rxaccstr,"%.1f",((float)rxacc/1024.0));
            strcat(infomsg,"\nRx: ");
            strcat(infomsg,rxaccstr);
            strcat(infomsg,_("MB "));
        }
        //100814 monthly acc...
        //sprintf(rxaccstr,_("(Month:%dMB) "),rxaccmonth_updated);
        //strcat(infomsg,rxaccstr);
        if (txacc < 1024) {
            sprintf(txaccstr,"%.1f",((float)txacc));
            strcat(infomsg,"\nTx: ");
            strcat(infomsg,txaccstr);
            strcat(infomsg,"KB ");
        }
        else {
            sprintf(txaccstr,"%.1f",((float)txacc/1024.0));
            strcat(infomsg,"\nTx: ");
            strcat(infomsg,txaccstr);
            strcat(infomsg,_("MB "));
        }
        //100814 monthly acc...
        //sprintf(txaccstr,_("(Month:%dMB) "),txaccmonth_updated);
        //strcat(infomsg,txaccstr);

if (ipa != NULL) {
strcat(infomsg,_("\nIP: "));
strcat(infomsg,ipa);
}
if (dname != NULL) {
strcat(infomsg,dname);
}
}
}

gboolean Update(gpointer ptr) {

    find_active();
    loopcnt=loopcnt+1;

    if (flagactive==0) flagtransfer=0;
    else {
        flagtransfer=1;
        if (rxacc!=rxaccprev) flagtransfer=2;
        if (txacc!=txaccprev) flagtransfer=3;
        if (txacc!=txaccprev && rxacc!=rxaccprev) flagtransfer=4;
    }
    //printf("loopcnt=%i flagtransfer=%i flagactive=%i\n",loopcnt,flagtransfer,flagactive); fflush(stdout); //TEST
    //lot of trouble with this logic, so introduce breakcnt to force icon update if stuck...
    if (flagtransferprev == flagtransfer) {
    if (loopcnt != 1) { //want to update icon on first loop.
        if (flagactive == flagactiveprev && flagtransfer == flagtransferprev && flagtransfer == 1) breakcnt=breakcnt+1; //no change.
        if (flagactive == flagactiveprev && flagtransfer == flagtransferprev && flagactive == 0) breakcnt=breakcnt+1; //no change.
    }
    else breakcnt=0;
    if (breakcnt != 0 && breakcnt < 8) return; //force update after 4 seconds.
    }
    breakcnt=0;
    flagactiveprev=flagactive;
    txaccprev=txacc;
    rxaccprev=rxacc;
    flagtransferprev=flagtransfer;

    if (flagtransfer==0) gtk_status_icon_set_from_pixbuf(tray_icon,networkdead_pixbuf);
    else if (flagtransfer==1) gtk_status_icon_set_from_pixbuf(tray_icon,networkblank_pixbuf);
    else if (flagtransfer==2) gtk_status_icon_set_from_pixbuf(tray_icon,networkin_pixbuf);
    else if (flagtransfer==3) gtk_status_icon_set_from_pixbuf(tray_icon,networkout_pixbuf);
    else if (flagtransfer==4) gtk_status_icon_set_from_pixbuf(tray_icon,networkboth_pixbuf);

    //update tooltip...
#if GTK_CHECK_VERSION(2, 15, 3) //2.9.1...
    gtk_status_icon_set_tooltip_text(tray_icon, infomsg);
#else
     gtk_status_icon_set_tooltip(tray_icon, infomsg);
#endif
    return TRUE; //2.9.1 end
}

void  view_popup_menu_onSetupNetworking (GtkWidget *menuitem, gpointer userdata);
void  view_popup_menu_onSetupNetworking (GtkWidget *menuitem, gpointer userdata)
  {
    /* we passed the view as userdata when we connected the signal */
    /*GtkTreeView *treeview = GTK_TREE_VIEW(userdata);*/
    system("network & ");
  }

void  view_popup_menu_onNetworkStatus (GtkWidget *menuitem, gpointer userdata);
void  view_popup_menu_onNetworkStatus (GtkWidget *menuitem, gpointer userdata)
  {
    system("xterm -T \"ifconfig\" -e $SHELL -c \"ifconfig; $SHELL\" & ");
  }

void  view_popup_menu_onDisconnect (GtkWidget *menuitem, gpointer userdata);
void  view_popup_menu_onDisconnect (GtkWidget *menuitem, gpointer userdata)
  {
    flagdisconnect=1;
    system("/opt/net_disconnect.sh & ");
  }

void  view_popup_menu_onReconnect (GtkWidget *menuitem, gpointer userdata);
void  view_popup_menu_onReconnect (GtkWidget *menuitem, gpointer userdata)
{
    system("/opt/net_connect.sh & ");
    flagactiveprev=0; /*100703*/
}

void tray_icon_on_menu(GtkStatusIcon *status_icon, guint button, guint activate_time, gpointer user_data)
{
        GtkWidget *menu, *menuitem, *icon;
        menu = gtk_menu_new();
        menuitem = gtk_image_menu_item_new_with_label(_("Setup networking"));
        icon = gtk_image_new_from_stock(GTK_STOCK_PREFERENCES, GTK_ICON_SIZE_MENU);
gtk_image_menu_item_set_image(GTK_IMAGE_MENU_ITEM(menuitem), icon);
g_signal_connect(menuitem, "activate", (GCallback) view_popup_menu_onSetupNetworking, status_icon);
        gtk_menu_shell_append(GTK_MENU_SHELL(menu), menuitem);
        menuitem = gtk_image_menu_item_new_with_label(_("Network status information"));
        icon = gtk_image_new_from_stock(GTK_STOCK_DIALOG_INFO, GTK_ICON_SIZE_MENU);
gtk_image_menu_item_set_image(GTK_IMAGE_MENU_ITEM(menuitem), icon);
g_signal_connect(menuitem, "activate", (GCallback) view_popup_menu_onNetworkStatus, status_icon);
        gtk_menu_shell_append(GTK_MENU_SHELL(menu), menuitem);
        if (flagactive != 0) {
flagdisconnect=0;
menuitem = gtk_image_menu_item_new_with_label(_("Disconnect from network"));
icon = gtk_image_new_from_stock(GTK_STOCK_DISCONNECT, GTK_ICON_SIZE_MENU);
gtk_image_menu_item_set_image(GTK_IMAGE_MENU_ITEM(menuitem), icon);
g_signal_connect(menuitem, "activate", (GCallback) view_popup_menu_onDisconnect, status_icon);
gtk_menu_shell_append(GTK_MENU_SHELL(menu), menuitem);
}
if (flagdisconnect == 1) {
menuitem = gtk_image_menu_item_new_with_label(_("Reconnect to network"));
icon = gtk_image_new_from_stock(GTK_STOCK_CONNECT, GTK_ICON_SIZE_MENU);
gtk_image_menu_item_set_image(GTK_IMAGE_MENU_ITEM(menuitem), icon);
g_signal_connect(menuitem, "activate", (GCallback) view_popup_menu_onReconnect, status_icon);
gtk_menu_shell_append(GTK_MENU_SHELL(menu), menuitem);
}
        gtk_widget_show_all(menu);
        gtk_menu_popup(GTK_MENU(menu), NULL, NULL, NULL, NULL, button, gdk_event_get_time(NULL));
}

void tray_icon_on_click(GtkStatusIcon *status_icon, gpointer user_data)
{
    if (flagactive == 0)system("/opt/net_connect.sh & ");
    else {
        system(_("flnotify -bg black -fg gold -b -r -t 10 'Note: right-click icon for network menu' & "));
        system("xterm -e $SHELL -c \"ifconfig; $SHELL\" & ");
    }
}

static GtkStatusIcon *create_tray_icon() {

    tray_icon = gtk_status_icon_new();
    g_signal_connect(G_OBJECT(tray_icon), "activate", G_CALLBACK(tray_icon_on_click), NULL);
    g_signal_connect(G_OBJECT(tray_icon), "popup-menu", G_CALLBACK(tray_icon_on_menu), NULL);


    networkblank_pixbuf=gdk_pixbuf_new_from_file("/usr/local/share/pixmaps/network_idle.png",&gerror);
    networkboth_pixbuf=gdk_pixbuf_new_from_file("/usr/local/share/pixmaps/network_in_out.png",&gerror);
    networkdead_pixbuf=gdk_pixbuf_new_from_file("/usr/local/share/pixmaps/network_offline.png",&gerror);
    networkin_pixbuf=gdk_pixbuf_new_from_file("/usr/local/share/pixmaps/network_in.png",&gerror);
    networkout_pixbuf=gdk_pixbuf_new_from_file("/usr/local/share/pixmaps/network_out.png",&gerror);

    gtk_status_icon_set_from_pixbuf(tray_icon,networkblank_pixbuf);

#if GTK_CHECK_VERSION(2, 15, 3) //2.9.1...
    gtk_status_icon_set_tooltip_text(tray_icon,_("No active network interfaces"));
#else
     gtk_status_icon_set_tooltip(tray_icon,_("No active network interfaces"));
#endif //2.9.1 end
    gtk_status_icon_set_visible(tray_icon, TRUE);
    return tray_icon;
}

int main(int argc, char **argv) {

    gtk_init(&argc, &argv);

    setlocale( LC_ALL, "" );
    bindtextdomain( "network_tray", "/usr/local/share/locale" );
    textdomain( "network_tray" );

    /*
    //100814 monthly acc (see also /usr/local/simple_network_setup/rc.network and rc.shutdown)...
    fp=fopen(rxmonthfile,"r");
    if (fp!=NULL) {
       fgets(rxstrmonth,12,fp);
       rxaccmonth=atol(rxstrmonth)/1024; //in KB.
       fclose(fp);
    }
    fp=fopen(txmonthfile,"r");
    if (fp!=NULL) {
       fgets(txstrmonth,12,fp);
       txaccmonth=atol(txstrmonth)/1024;
       fclose(fp);
    }
    */

    tray_icon = create_tray_icon();

    g_timeout_add(interval, Update, NULL); //2.9.1

    gtk_main();
    return 0;
}

Download a copy and keep it handy: Core book ;)

Offline Misalf

  • Hero Member
  • *****
  • Posts: 1702
Re: is there a network manager,widget for openbox
« Reply #9 on: February 28, 2016, 06:58:08 PM »
network_tray.tcz  submitted to 7.x x86.
Download a copy and keep it handy: Core book ;)
